Impaired Mobility Platform Lifts

A platform lift solution to suit any indoor or outdoor environment or application.

An overview of our range.

Our Impaired Mobility Platform Lifts are the ideal access solution for transporting people with mobility-related issues, particularly for those who rely on wheelchairs and mobility scooters, between floors.

Our platform lift range varies in both capacity and travel requirements to allow for both single and multiple user operation across a range of indoor and outdoor applications.

  • Vertical Open Platform Lifts (up to 3m travel)
  • Vertical Cabin Platform Lifts (up to 15m travel)
  • Inclined Staircase Platform Lifts

Platform Lifts speed is limited to 0.15m/s in accordance with the Supply of Machinery (Safety) Regulations 2008.

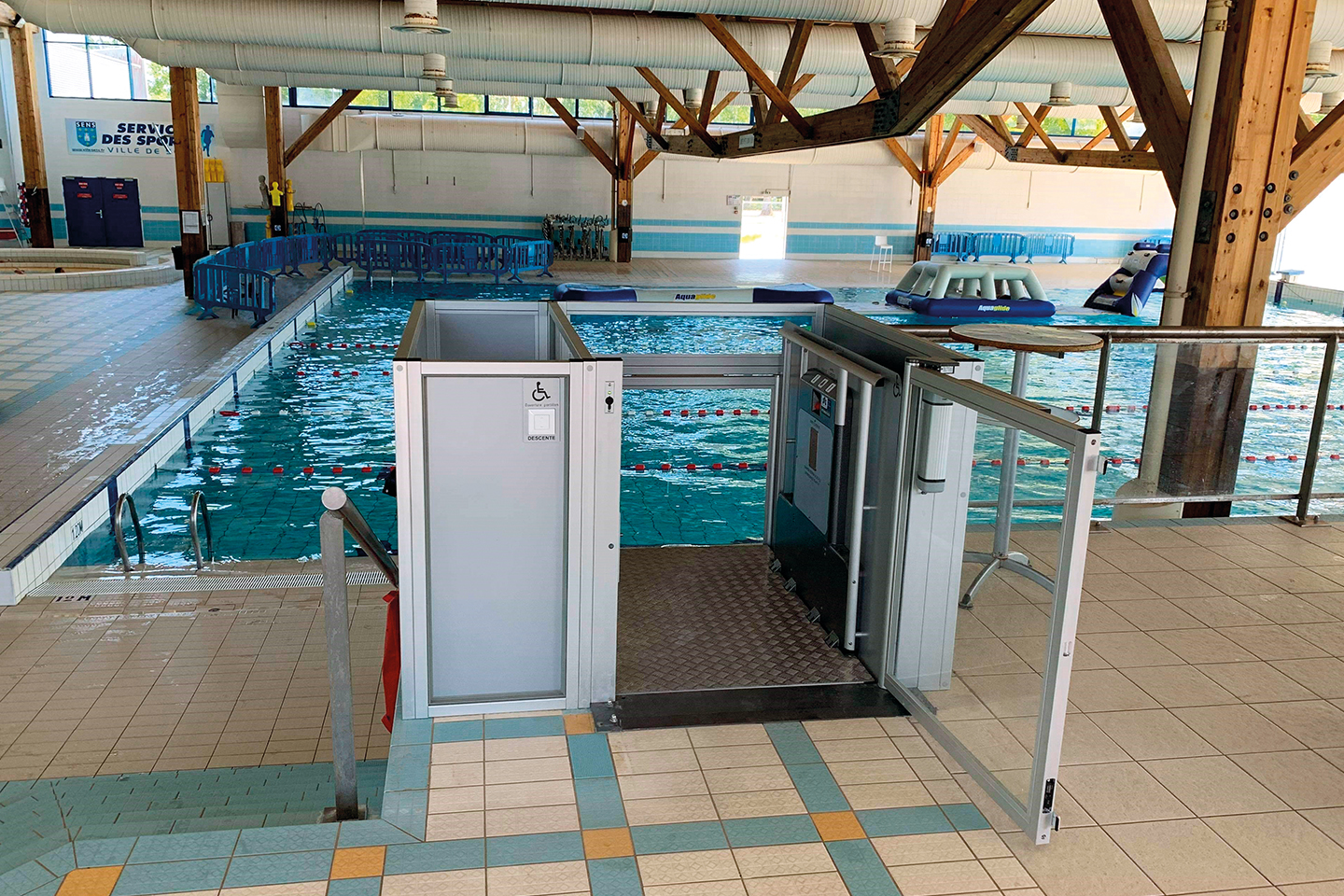

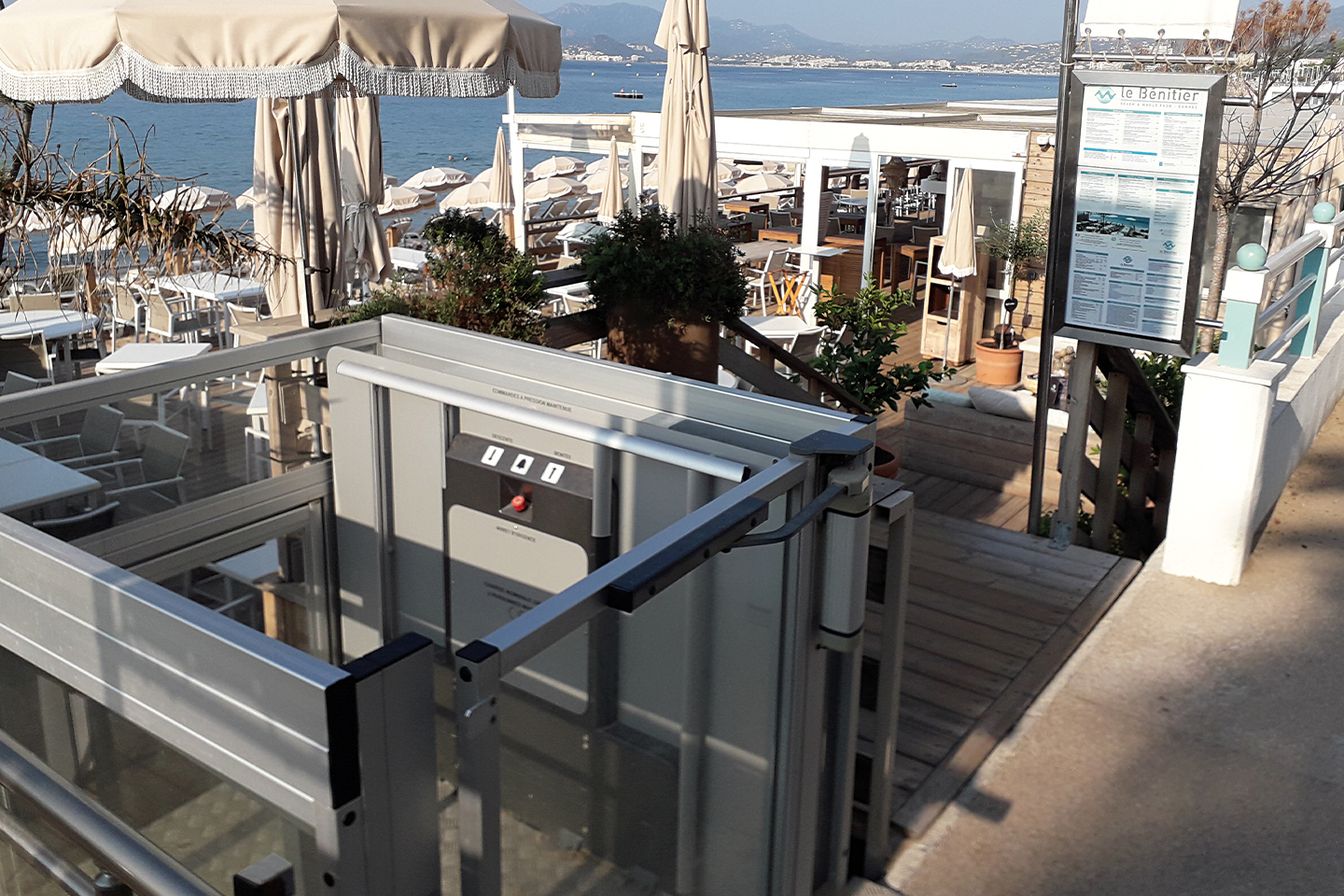

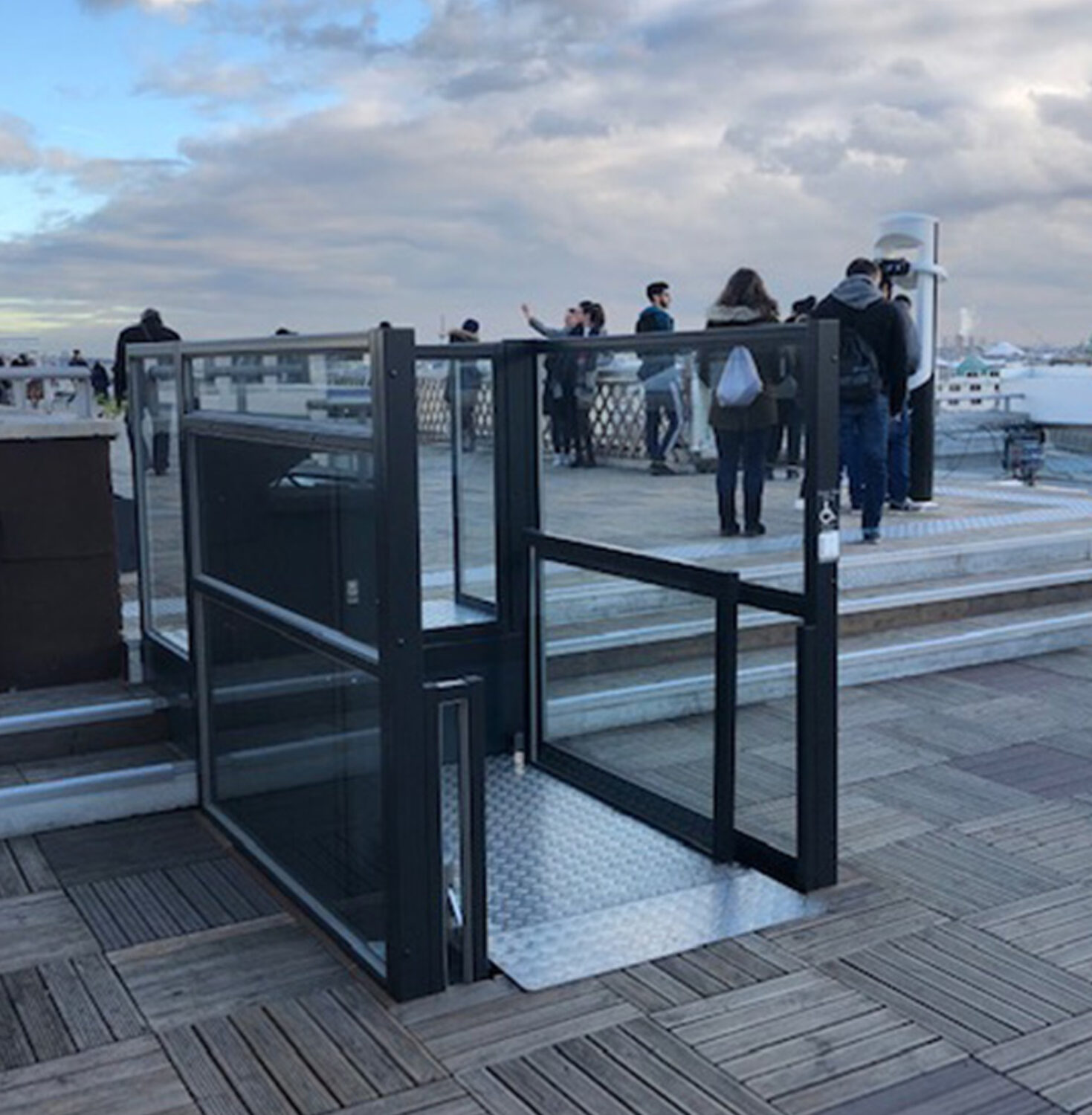

Vertical Open Platform Lifts (upto 3m travel)

Ideal for moving impaired mobility users and wheelchairs between floors.

Our Vertical Open Platform Lifts (up to 3m travel) provide a good option for short travel applications in commercial and public buildings. The range is split between models for travel between 0.5m and 1.70m and a model capable of up to 3m. Both are manufactured to comply with EN 81-41 and the EC Machinery Directive 2006/42/EC and designed to meet the most stringent requirements to improve access for all people with reduced mobility to all areas of the home or premises.

Ideally suited for:

  • Bars
  • Pubs
  • Restaurants
  • Hotels
  • Offices
  • Schools
  • Hospitals
  • Public Areas



Key Features and Benefits

Additional Features and Benefits

We have a range of options and features available across our range of Vertical Open Platform Lifts (up to 3m travel) and we have listed the most common specification options below for your convenience.

  • Hinged landing door or Concertina shutter gate to landings
  • Versatile design with a flexible range of car and shaft dimensions to suit available site requirements
  • Car sizes available from 400mm wide x 600mm deep x 800mm high up to 1000mm wide x 1000mm deep x 1200mm high
  • Choice of finishes: Zintec (For painting by others), Galvanised, Stainless steel
  • 3 phase or single phase
  • Up to 30 stops / 120m travel
  • Optional extras available: 2-hour fire-rated landings, Car doors (Diagonal Drop bar, picket gate), Machine room access ladder, Cladded structure.
  • Chain drive with governor operated safety gear available for sites with accessible space beneath the lift shaft.
  • Manufacture lead-time: 4-5 working weeks (from the order and drawing approval)

Technical downloads

Discuss your requirements

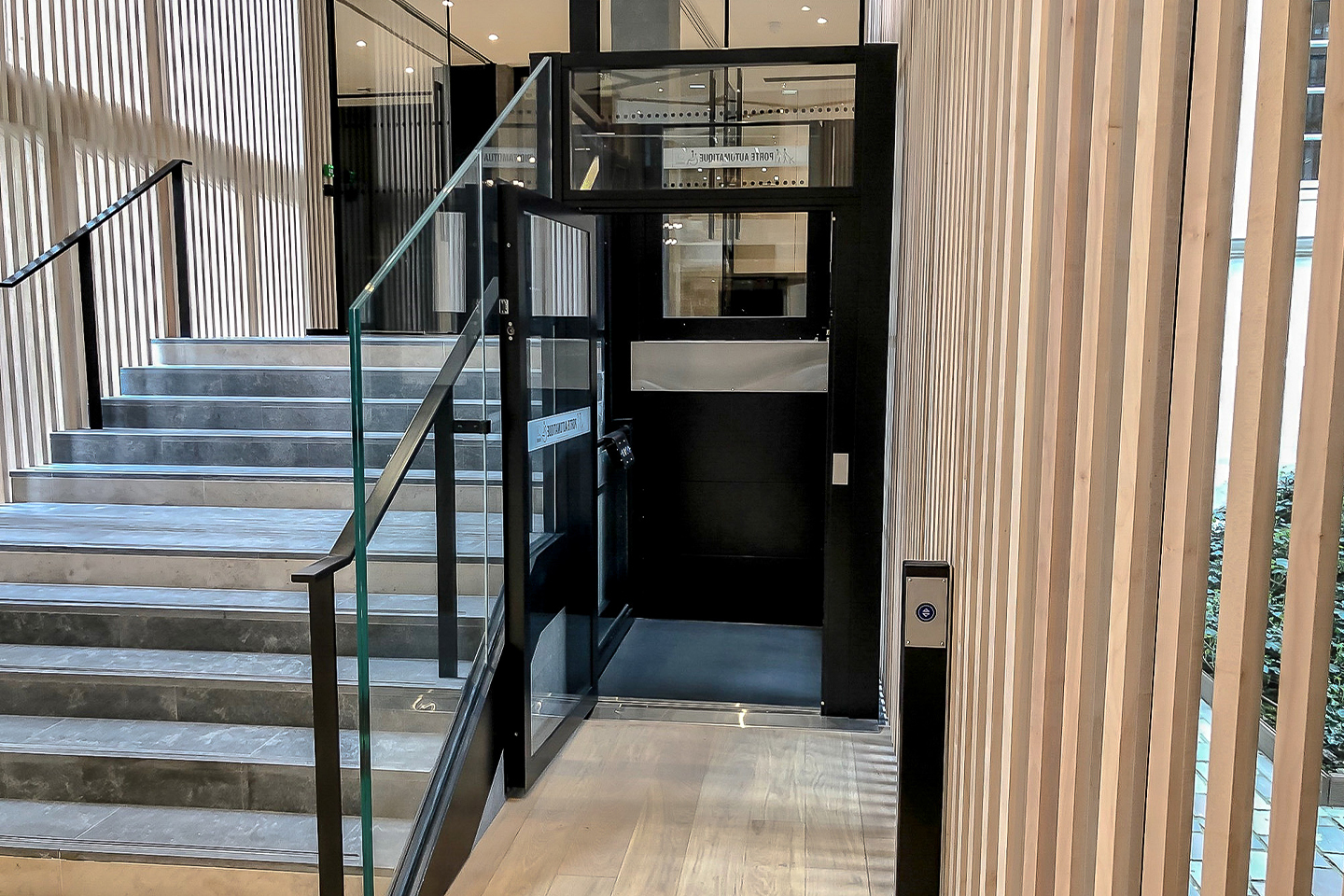

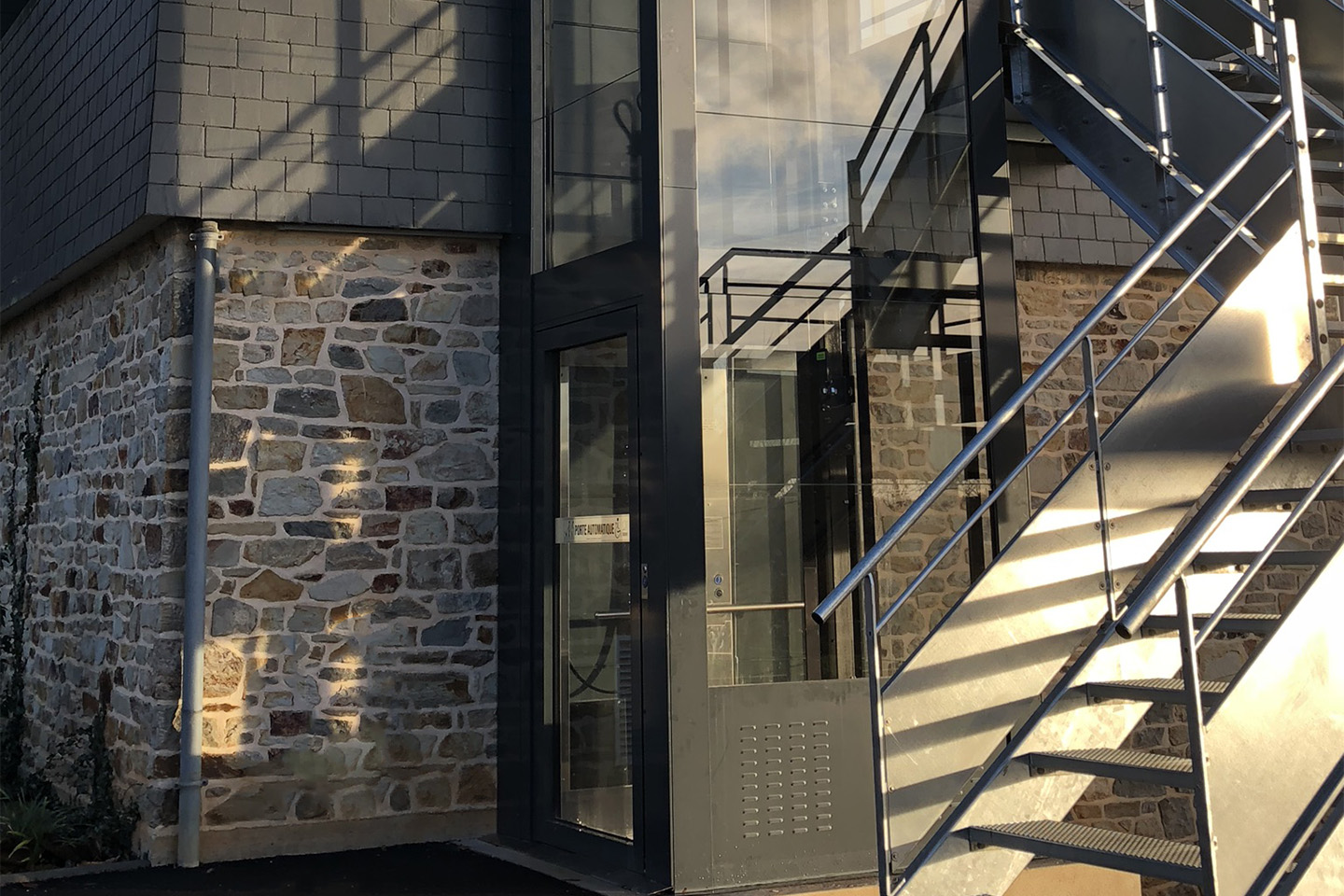

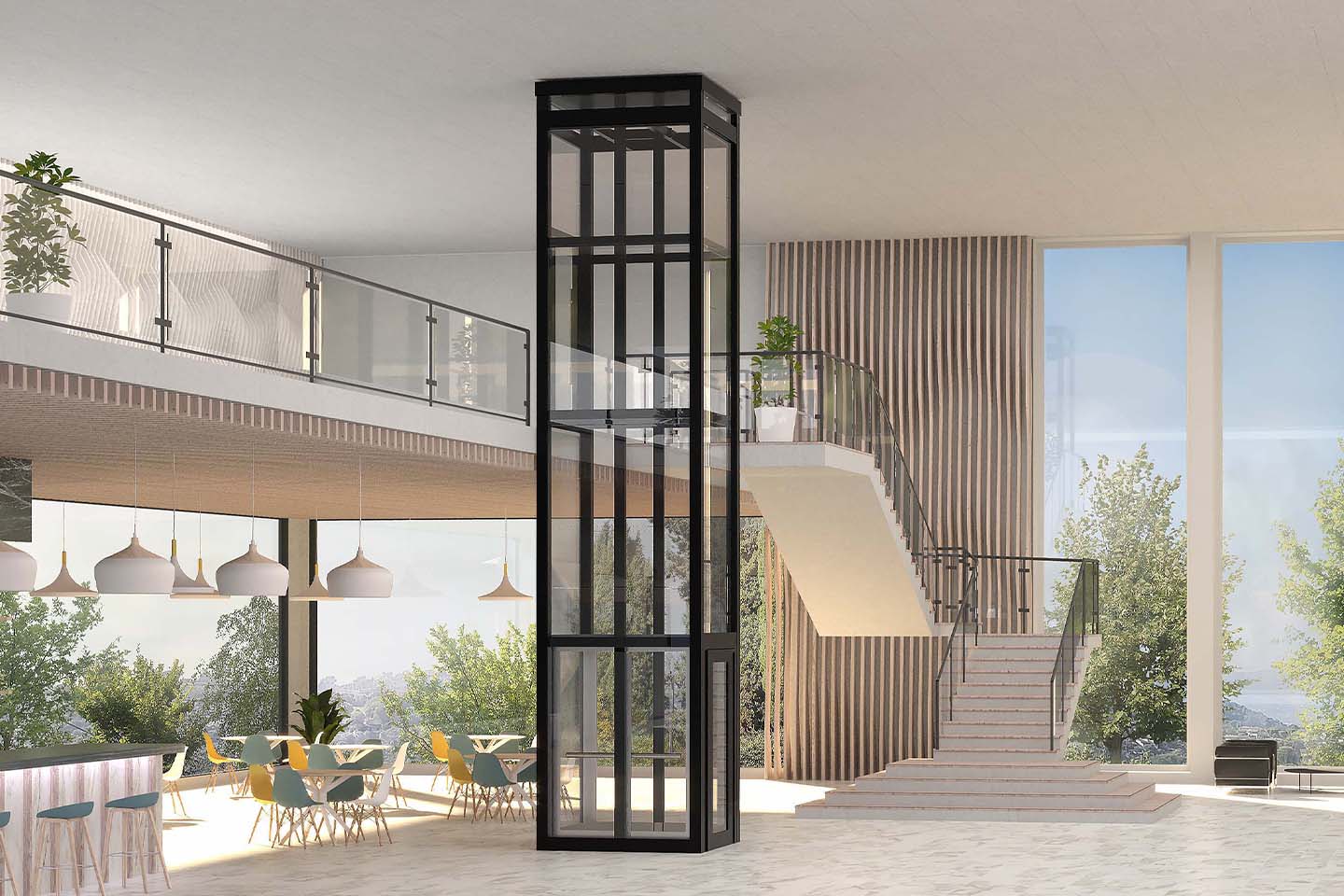

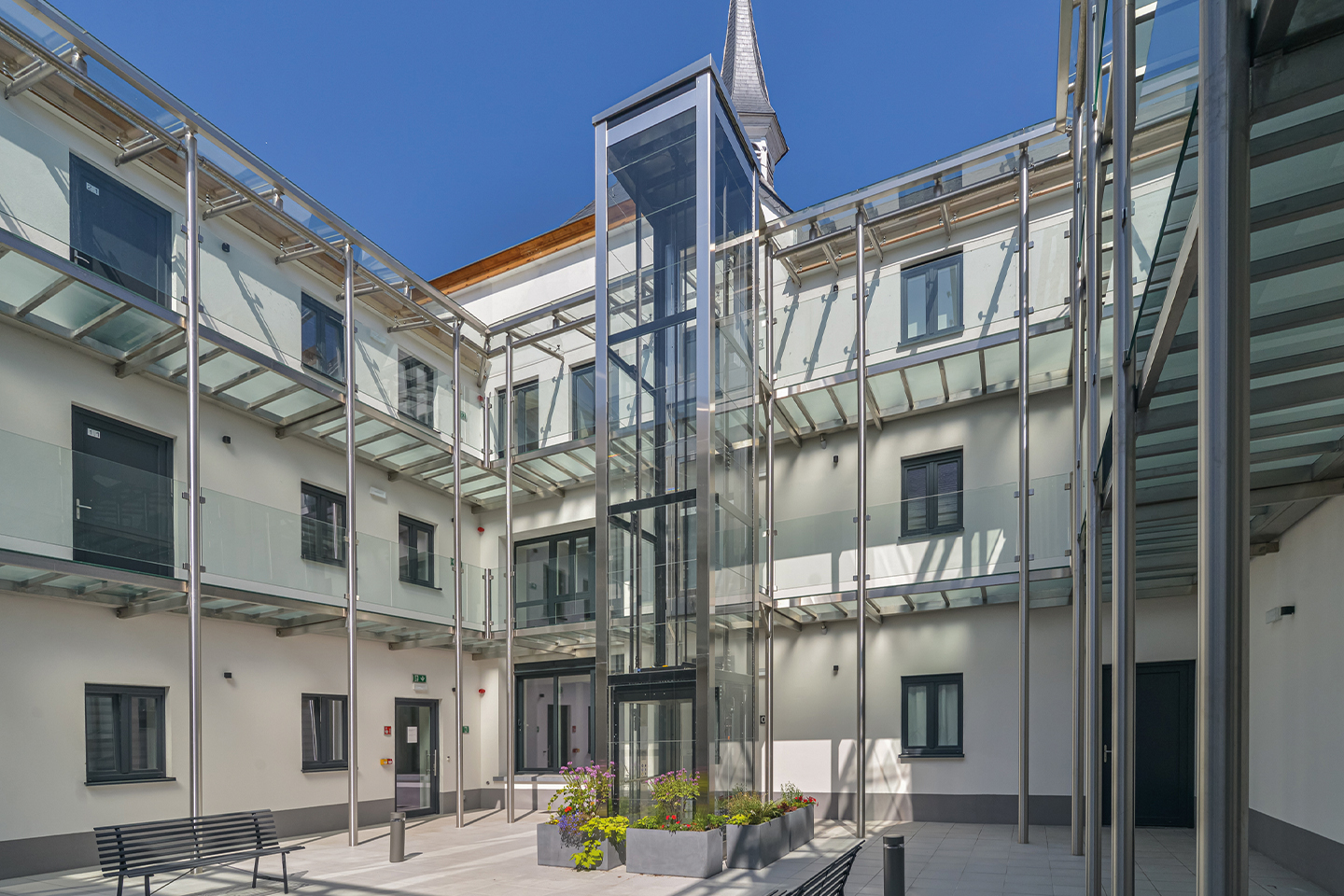

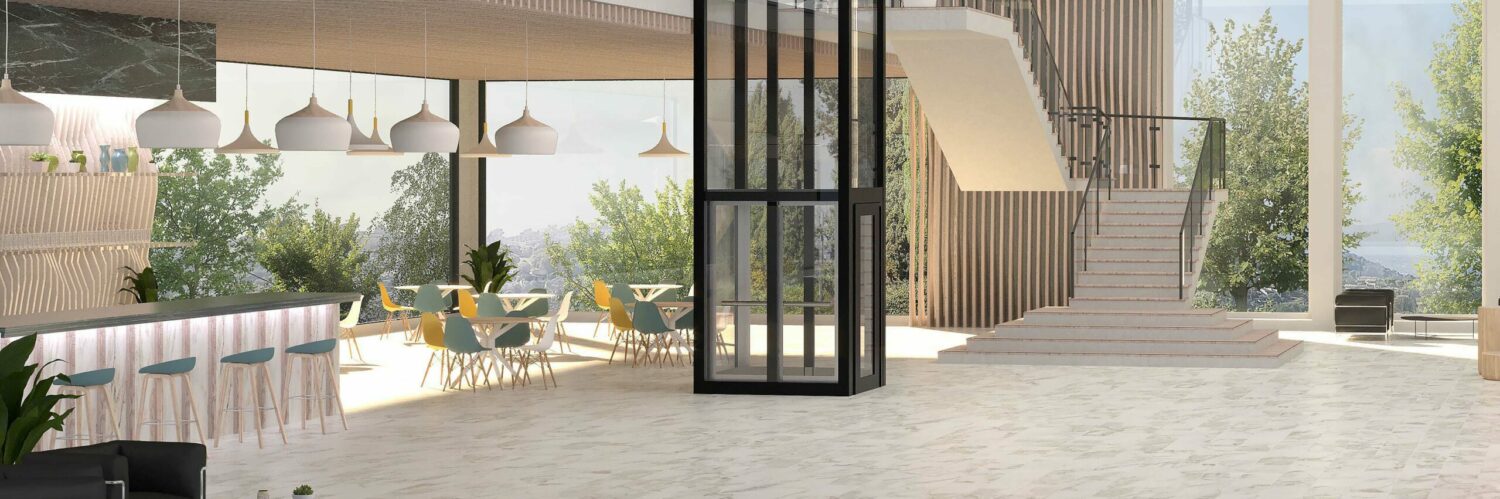

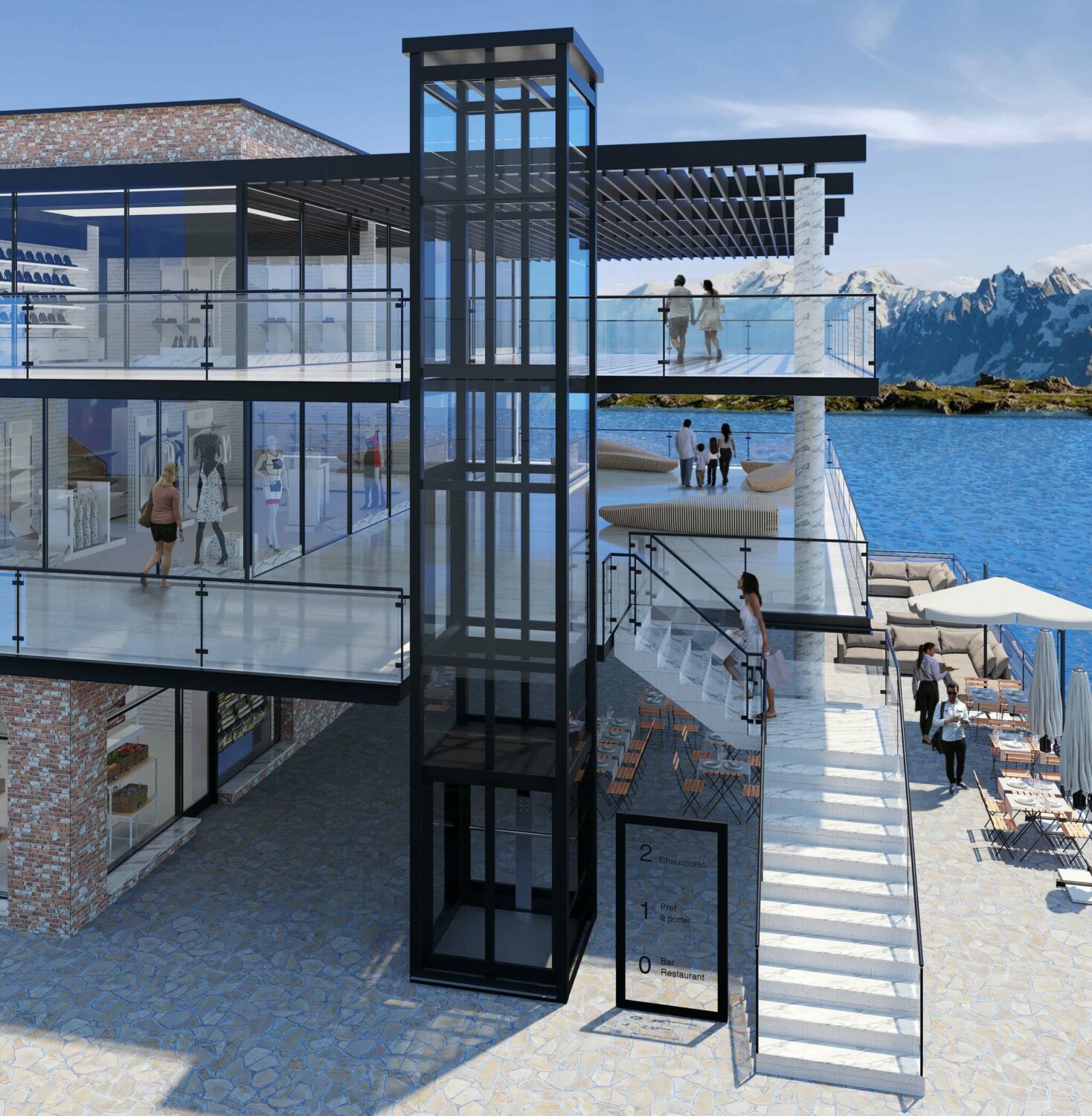

Vertical Cabin Platform Lift (upto 15m travel)

Ideal for moving impaired mobility users and wheelchairs between floors.

Our Vertical Long Travel range of platform lifts provide a good option for applications in commercial and public areas. Manufactured to comply with EN 81-41 and the EC Machinery Directive 2006/42/EC and designed to meet the most stringent requirements to improve access for all people with reduced mobility to all areas of the home or premises.

Installed without a load-bearing wall, in a simple plasterboard hoistway, they operate without a machine room and without a pit (when using a ramp), or with an 8-cm pit inside or outside existing buildings. These lifts are perfect for installations with difficult technical constraints and low traffic.

Ideally suited for:

  • Bars
  • Pubs
  • Restaurants
  • Hotels
  • Offices
  • Schools
  • Hospitals
  • Public Areas



Key Features and Benefits

We have a range of options and features available across our range of Vertical Cabin Platform Lifts (up to 15m travel) and we have listed the most common specification options below for your convenience.

  • 250kg,  500kg, 750kg 1000kg and 2000kg capacities
  • Load bearing lift shaft required
  • Hinged landing door or Concertina shutter gate to landings
  • Up to 15m travel
  • Versatile design with a flexible range of car and shaft dimensions to suit available site requirements
  • Car sizes available from 600mm wide x 800mm deep x 1300mm high up to 1200mm wide x 1500mm deep x 2000mm high
  • Choice of finishes: Zintec (For painting by others), Galvanised, Stainless steel
  • 3 phase or single phase
  • Optional extras available: 2-hour fire-rated landings, Car protection (Diagonal Drop bar, picket gate), Machine room access ladder.
  • Option for provision for sites with accessible space beneath the lift shaft.
  • Manufacture lead-time: 5-6 working weeks (from the order and drawing approval)

Technical downloads

Discuss your requirements

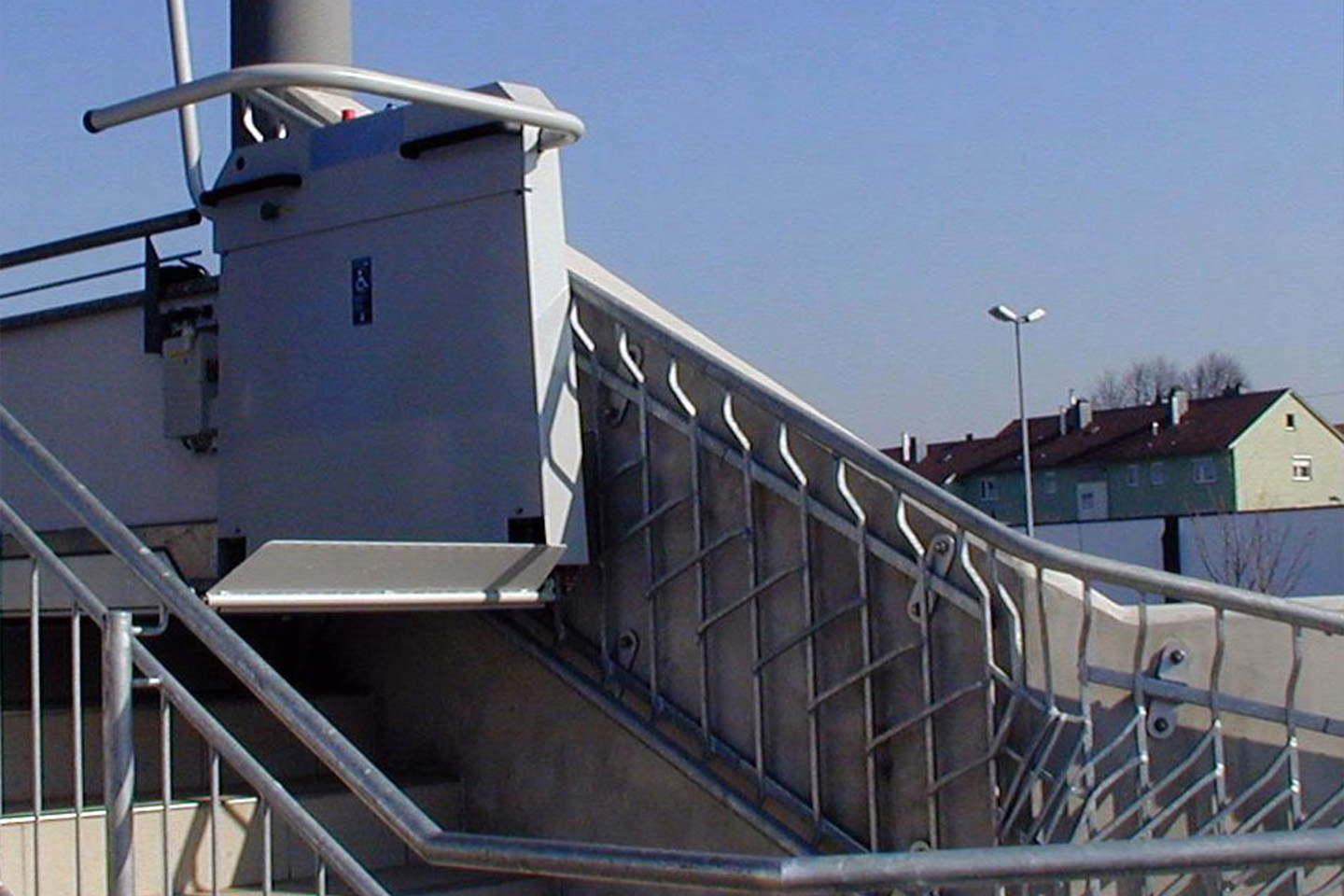

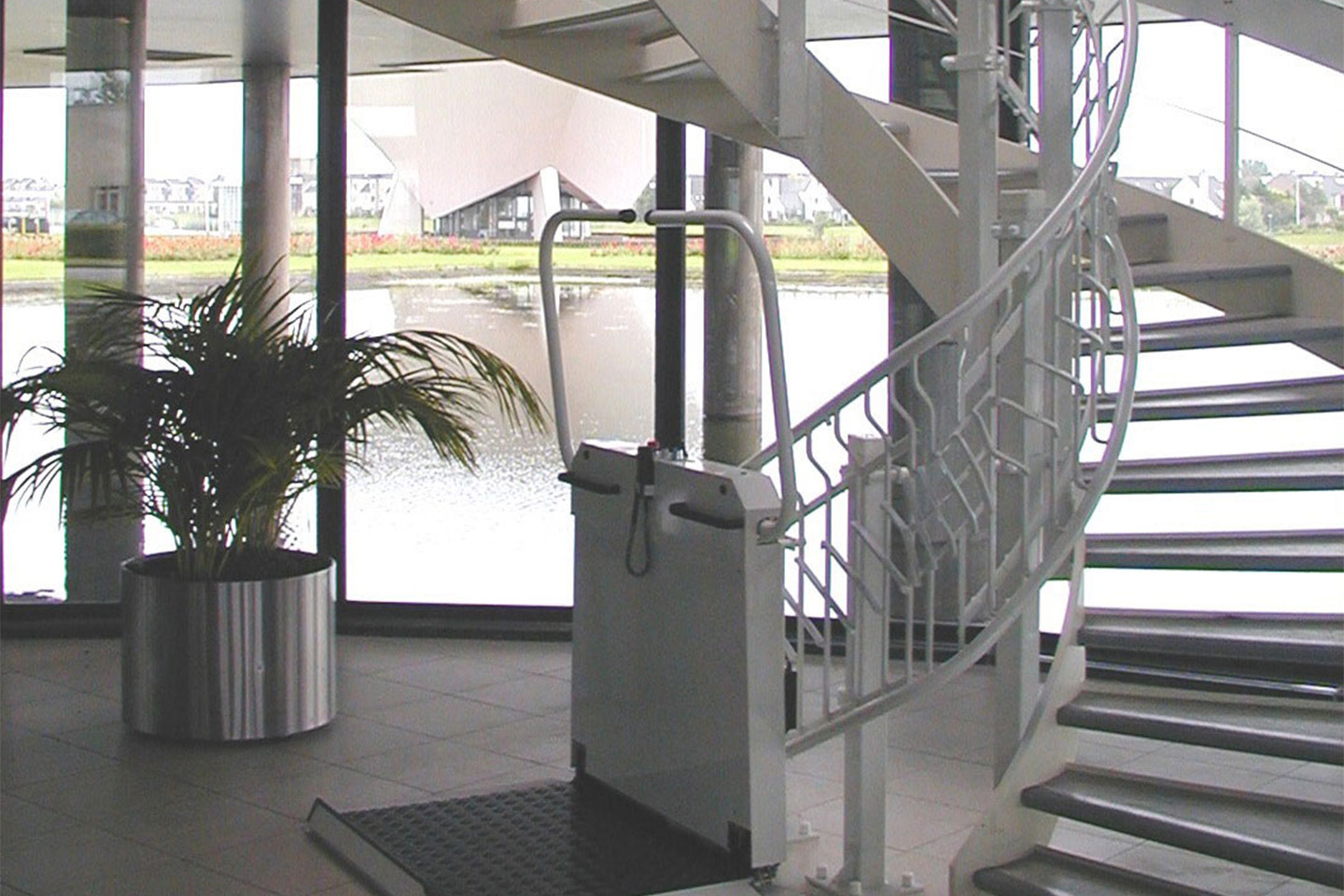

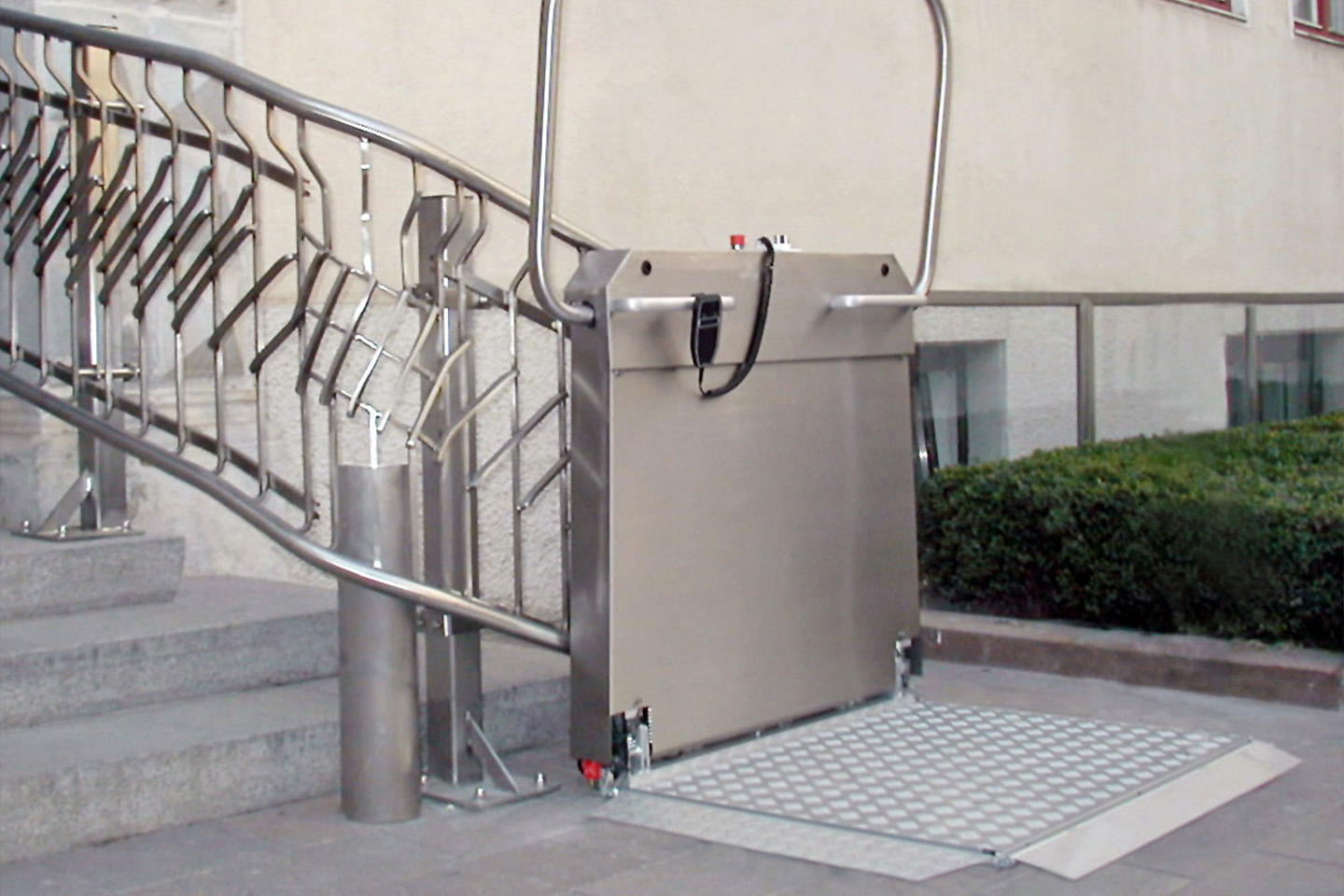

Inclined Staircase Platform Lifts

Ideal for moving impaired mobility users and wheelchairs along existing staircases.

Platform stairlifts are tailored to the needs of wheelchair and impaired mobility users and transport users comfortably and safely to every floor. A platform stairlift transports the wheelchair user sitting in his or her own wheelchair and is the perfect solution for all those who cannot transfer from chair to lift without the assistance of others.

Whether stairs with two steps or curving stairs extending over several floors – our platform stairlifts can be mounted on virtually any stairs. Each running rail is manufactured individually by hand and thus adapted precisely to the conditions of your site.

Thanks to the special arrangement and rigidity of the barriers, you can also use our platform stairlifts while standing up.

Ideally suited for:

  • Bars
  • Pubs
  • Restaurants
  • Hotels
  • Offices
  • Schools
  • Hospitals
  • Public Areas



Key Features and Benefits

Additional Features and Benefits

We have a range of options and features available across our range of Inclined Staircase Platform Lifts and we have listed the most common specification options below for your convenience.

  • Capacity: 300kg
  • Incline:  Up to 60°
  • Electrical: Three-core, 3 x 1.5mm² 230V / 50Hz 16A
  • Platform Sizes
    • 680 x 840mm
    • 700 x 900mm
    • 750 x 1000mm
    • 800 x 1000mm

Technical downloads

Discuss your requirements

Support Services

From specification through to handover, we have a range of support services that are available to assist you in your Impaired Mobility Platform Lift requirements.

Product Specification
We are experts in what we provide, so let us partially or fully specify your new lift package for you.
Lift Installation
When your resources are limited, our team are available to install all our new lift packages on your behalf.
Project Management
Take our lift installation service one step further and allow us to fully project manage your installation.
Technical Support
All our new lift packages are fully technically supported by our experienced team and partners.
Lift Consultant Support
We are on-hand to assist lift consultants gain a better understanding in the products we supply.
Architect Advice
Our team are available to assist architects incorporate any of our new lifts packages into their designs.

Impaired Mobility Platform Lifts

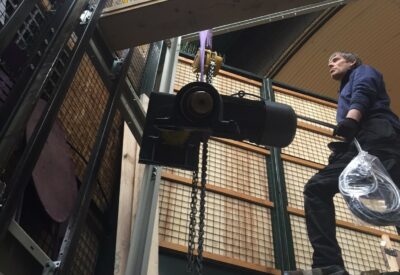

Borough Market, London
